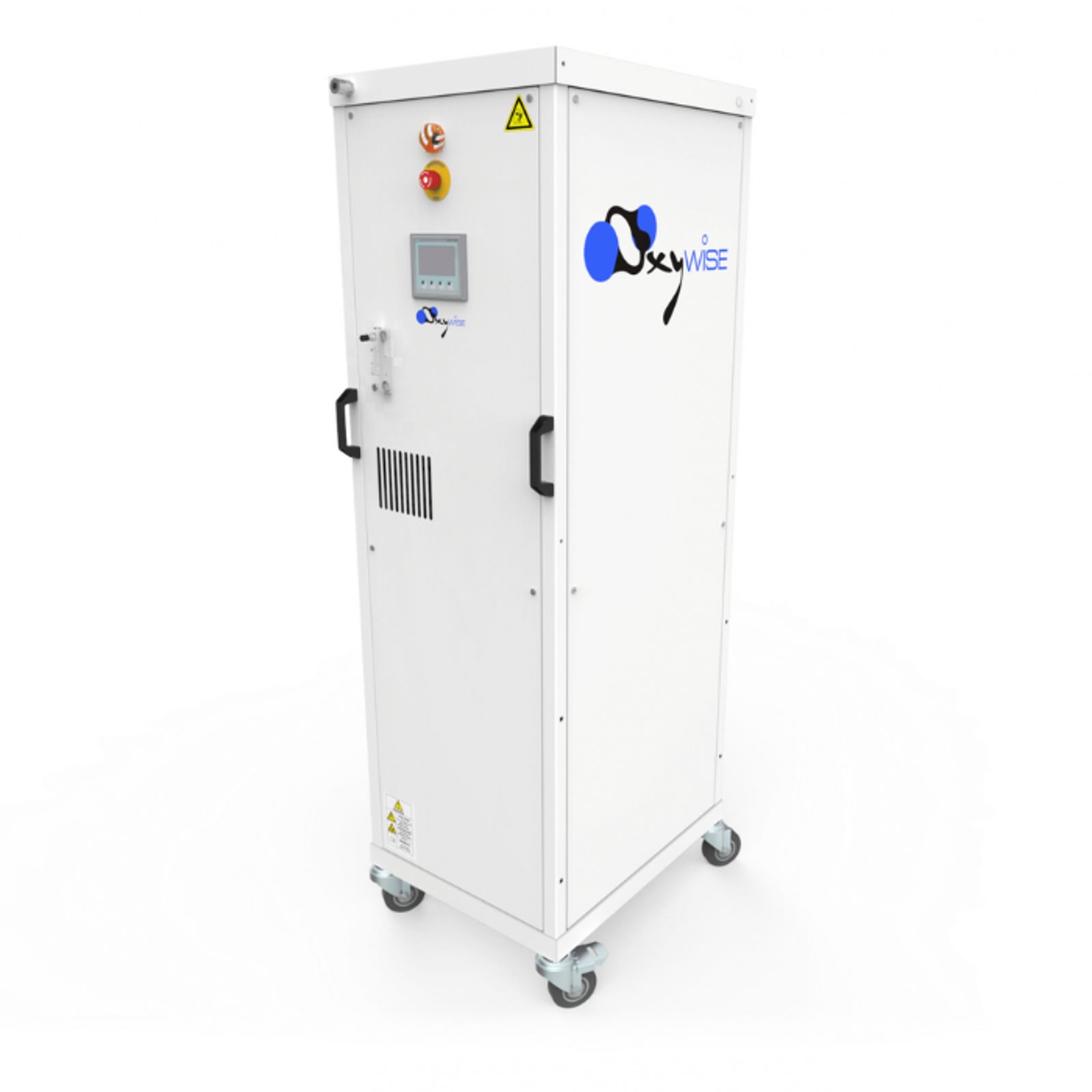

OXYPORT

The Oxyport oxygen generator is a compact and transportable oxygen generation solution designed for applications where mobility, speed of deployment, and operational flexibility are essential. Oxywise Oxyport units enable on‑site oxygen production in locations that cannot be served by fixed installations or permanent infrastructure.

This solution is particularly suited for users who require reliable oxygen availability across changing locations, temporary projects, or decentralized operations.

Purpose of the Oxyport Oxygen Generator

The primary purpose of the Oxyport oxygen generator is to deliver independent, on‑demand oxygen generation wherever it is needed. Unlike stationary systems, Oxyport is designed to be easily moved and deployed, allowing users to establish oxygen supply quickly without complex installation requirements.

Oxywise developed Oxyport to address real‑world scenarios where oxygen demand exists outside traditional plant rooms, technical buildings, or permanent facilities.

Mobility as a Core Design Principle

Mobility is at the heart of the Oxyport concept. The system is engineered to be compact and transportable while still providing stable oxygen output suitable for practical applications. This design allows teams to relocate the unit as operational needs change, making it ideal for environments where work locations are temporary or frequently shifting.

By combining portability with dependable performance, Oxyport bridges the gap between fixed oxygen generators and delivered oxygen cylinders.

Rapid Deployment Without Infrastructure Constraints

The Oxyport oxygen generator is designed to be deployed quickly, reducing the time between arrival on site and oxygen availability. Minimal infrastructure requirements allow the system to be put into operation without constructing dedicated technical spaces or modifying existing facilities.

This makes Oxyport especially valuable in situations where time, accessibility, or infrastructure limitations would otherwise delay oxygen supply.

Supporting Decentralized and Temporary Applications

Many industries and organizations operate in decentralized environments where centralized oxygen supply is impractical. The Oxyport unit supports these use cases by enabling oxygen generation close to the point of consumption.

This decentralized approach reduces reliance on cylinder transport, improves responsiveness to demand changes, and supports safer and more efficient operations in the field.

Enhancing Supply Autonomy in Dynamic Environments

By generating oxygen directly on site, the Oxyport oxygen generator enhances supply autonomy in environments where external logistics are unreliable or inefficient. Users gain direct control over oxygen availability, independent of delivery schedules or cylinder inventory constraints.

This autonomy is particularly valuable in remote locations, emergency scenarios, and projects with evolving oxygen requirements.

Standard features

  • Compact solution including oil-free compressor
  • Built in purity analyzer for continuous monitoring
  • Control system based on SIEMENS with 4" colour touch screen
  • Portable - plug & play
  • Low operating costs
  • Acrylic flow regulator

Oxygen generators

Produce gaseous oxygen from compressed air on site and offer a cost-effective, reliable and safe alternative to traditional oxygen gas supplies such as cylinders or cryogenic liquid. Design is made for round the clock 24/7 operation. Each generator is equipped with automatic start&stop function, enabling the generator to start and stop automatically according to the consumption.

OXYPORT generator is the most compact, convenient and reliable source of oxygen.


PSA Technology

PSA Oxygen Generator consists of two columns filled with a zeolite molecular sieve. Pre-treated compressed air enters the active column and flows up through the zeolite. Nitrogen and other unwanted gases are adsorbed while the oxygen passes through. The active column then becomes fully pressurized. When this pressure is released, the column becomes inactive and completely regenerates during the depressurization. In order to secure a steady flow of oxygen each generator is built from two columns; one is active while the other is inactive. At the end of each columns cycle, they switch roles.

Flow

10 l/min


Outlet pressure

4-6 bar


Purity

94 %


Power

1.3 kW

Oxywise Oxyport Generator Data-sheet

Oxywise Oxyport Generator Data-sheet

Discover the rest of our Oxygen generators portfolio


Medical Oxygen Generator

Produces medical grade oxygen from compressed air on site. 1 - 81 m3/h

Oxygen generator

Produce gaseous oxygen from compressed air on site.
0.4 - 430 m3/h
Oxywise oxygen filling station updated square.png

Oxygen Filling Station

Complex system designed for filling cylinders on site.
3 - 42 m3/h


Containerized Oxygen Plant

Compact solution design for outdoors installation.
9/20/40 ft
Oxywise Skid Mounted Unit updated square.png

Skid Mounted Unit

Skid mounted unit represents a plug-and-play solution. Both, medical and industrial versions can be supplied.
3.2 - 30 m3/h

FAQ

The Oxyport oxygen generator is a portable, on‑site oxygen generation unit designed for flexible and mobile applications. It produces oxygen from ambient air and is engineered to be easily transported and operated in locations where fixed oxygen systems are not feasible.

Oxyport differs from stationary oxygen generators primarily in its mobility and deployment flexibility. While stationary systems are intended for permanent installation, Oxyport is designed to be moved between locations and operated with minimal setup. This makes it suitable for temporary sites, field operations, and decentralized oxygen requirements.

Oxyport is typically used in applications such as temporary medical facilities, field operations, remote industrial sites, emergency response scenarios, and maintenance or construction projects. Any environment that requires dependable oxygen supply without permanent infrastructure can benefit from an Oxyport unit.

Oxyport is designed to provide stable oxygen output within its specified operating parameters. It can be used for continuous or repeated operation depending on application requirements, making it suitable for projects where oxygen is needed throughout the working day or across extended operational periods.

By generating oxygen on site, Oxyport reduces or eliminates the need to transport oxygen cylinders to and from remote or temporary locations. This simplifies logistics, reduces handling effort, and improves response time when oxygen demand changes unexpectedly.

Yes, Oxyport is specifically designed for relocation. Its compact and transportable design allows it to be moved between sites as needed, supporting projects with changing locations or multiple operational phases.

For applications that rely on frequent cylinder deliveries, Oxyport can offer a cost‑effective alternative by reducing recurring transport, rental, and refill expenses. Over time, this leads to improved cost predictability and greater control over oxygen supply in dynamic environments.
