NITROPORT

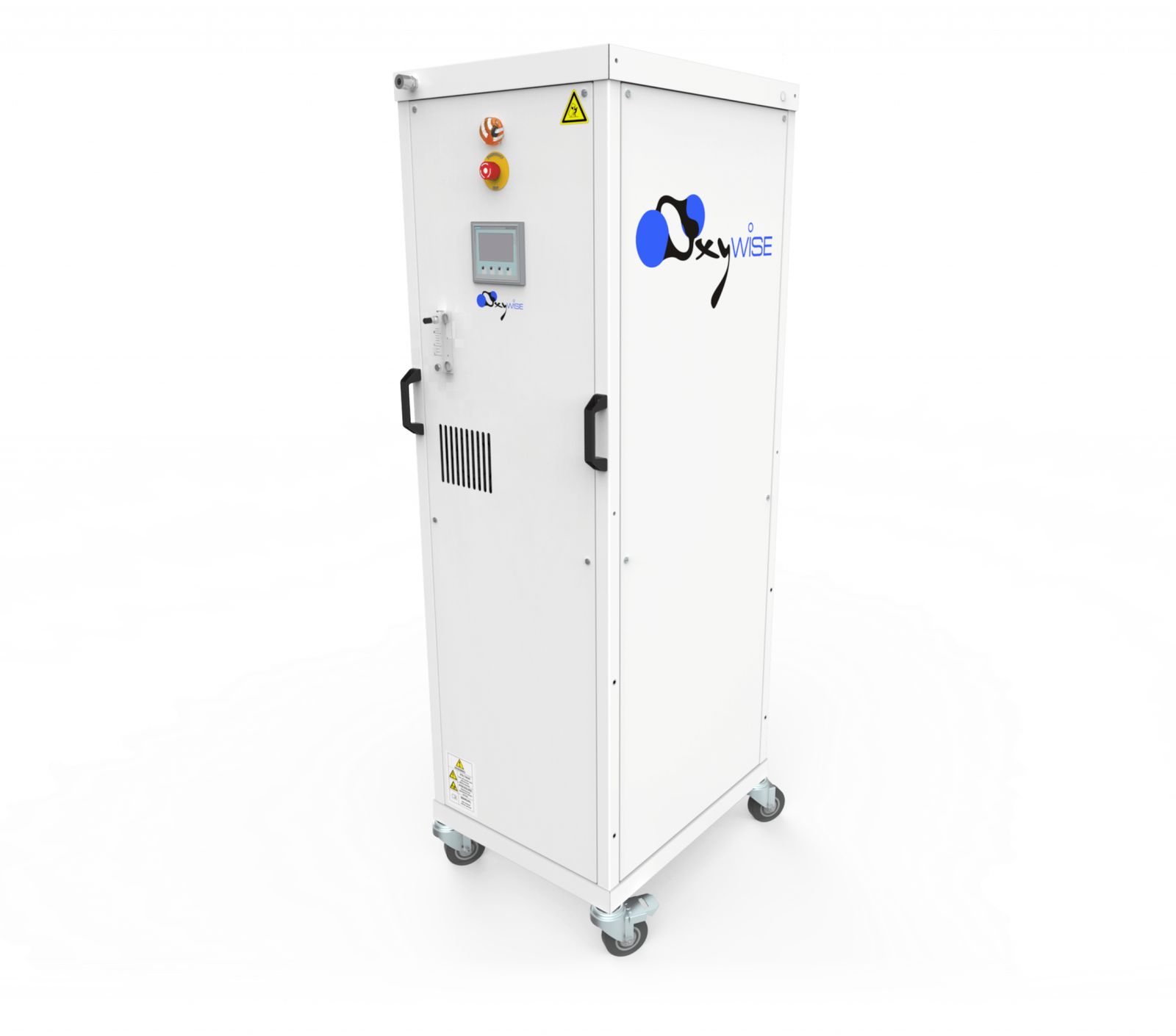

The Nitroport nitrogen generator is a portable on‑site nitrogen generation solution developed for applications where mobility, flexibility, and rapid deployment are essential. Oxywise Nitroport units enable nitrogen production directly at the point of use, even in locations where permanent installations or centralized gas systems are not available.

This solution is designed for dynamic industrial environments where nitrogen demand moves with the operation rather than remaining fixed in one location.

Purpose of the Nitroport Nitrogen Generator

The primary purpose of the Nitroport nitrogen generator is to provide independent, on‑demand nitrogen generation in mobile or temporary settings. Unlike stationary nitrogen generators, Nitroport is designed to be transported and deployed quickly, allowing users to establish nitrogen supply without complex infrastructure or long installation times.

Oxywise developed Nitroport to serve industries that operate across multiple sites, temporary projects, or decentralized production areas where flexibility is critical.

Portability as a Functional Advantage

Portability is not only a design feature of the Nitroport system, but a practical operational advantage. The unit is engineered to remain compact and manageable while delivering reliable nitrogen output suitable for real‑world industrial applications.

This portability allows teams to redeploy nitrogen generation capacity as project locations change, reducing the need for repeated cylinder deliveries and simplifying gas supply logistics.

Rapid Deployment Without Permanent Infrastructure

The Nitroport nitrogen generator is intended for environments where traditional nitrogen installations are impractical. Minimal setup requirements allow the unit to be commissioned quickly, providing nitrogen availability shortly after arrival on site.

This capability is particularly valuable in short‑term projects, field operations, maintenance activities, or facilities undergoing expansion or reconfiguration.

Supporting Decentralized and Remote Nitrogen Applications

Many industrial processes require nitrogen at points far removed from centralized utilities. Nitroport supports these decentralized use cases by bringing nitrogen generation directly to the application.

By producing nitrogen close to consumption, the system reduces transport effort, improves response time, and enhances operational efficiency in remote or distributed environments.

Improving Supply Autonomy in Dynamic Operations

Reliance on delivered nitrogen can create logistical challenges where access is limited or schedules are unpredictable. Nitroport strengthens supply autonomy by enabling internal nitrogen production, independent of external delivery cycles.

This autonomy allows operations to continue without interruption when access conditions, transport availability, or project timelines change unexpectedly.

Standard features

  • Compact solution including oil-free compressor
  • Built in purity analyzer for continuous monitoring
  • Acrylic flow regulator
  • Control system based on SIEMENS with 4" colour touch screen
  • Portable - plug & play
  • Low operating costs

Nitrogen generators

Nitrogen generators produce nitrogen gas from compressed air and offer a cost-effective, reliable and safe alternative to traditional nitrogen gas supplies such as cylinder or liquid.

Nitrogen generators are available in 20 standard models with capacity in the range from 1 - 1800 Nm3/hour from 95% to 99.9995% purity. Oxywise PSA generators are designed for 24/7 operation. The touchscreen control has user friendly interface with automatic start/stop function based on gas consumption.


PSA Technology

A PSA Nitrogen Generator consists of two columns filled with a carbon molecular sieve (CMS). Pre-treated compressed air enters the active column and flows up through the CMS. Oxygen and other unwanted gases are adsorbed while the nitrogen passes through. The active column then becomes fully pressurized. When this pressure is released, the column becomes inactive and completely regenerates during the depressurization. In order to secure a steady flow of nitrogen each generator is built from two columns; one is active while the other is inactive. At the end of each column’s cycle, they switch roles.

Flow

4-60 l/min


Outlet pressure

5-6 bar


Purity

95-99.999 %


Power

1.2 kW

Oxywise Nitroport Generator Datasheet

Oxywise Nitroport Generator Datasheet

Discover the rest of our Nitrogen generators portfolio


Nitrogen Generator

Produces nitrogen gas from air and offer a cost-effective, reliable and safe alternative to traditional nitrogen gas supplies.
1 - 5193 m3/h


LaserGas Generator

This system meets and exceeds cutting gas quality requirements of the major manufacturers of laser cutting machines.
13 - 90 m3/h

Containerized nitrogen plant.png

Containerized Nitrogen Plant

Nitrogen generating system built in ISO container.
1 - 554 m3/h

Oxywise nitrogen skid mounted unit .png

Skid Mounted Nitrogen Generating Unit

Compact skid-mounted nitrogen unit with 95–99.9995% purity, 5.1–49.3 m³/h flow, and up to 100 cylinders/day at 200–300 bar. Reliable, transportable, and built for 24/7 use.

FAQs

The Nitroport nitrogen generator is a portable on site nitrogen generation unit designed for flexible and mobile applications. It produces nitrogen from ambient air and is engineered to be easily transported and operated in locations where fixed nitrogen installations are not feasible.
